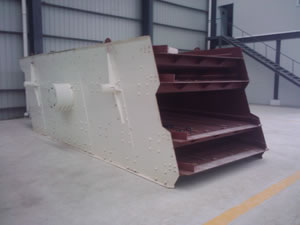

Vibrating Screen
Description:
The vibrating screen is typically screening machine utilized in separating coals, fertilizers, minerals and more in fertilizer industry, mining industry, coal dressing, power station, building industry, chemical industry, etc.
It features reliable performance, high durability, high screening capacity, easy operation, convenient maintenance, and so on.
We mainly provide two types of vibrating screen for clients across the glob: YA elliptic vibrating screen and YK circular vibrating screen.
YA Elliptic Vibrating Screen:
The YA elliptic vibrating screen a kind of new-type screening machine, and its screening track is elliptic. It is typically designed for separating sand, coal, minerals, building materials, etc. And it is also utilized in power station and chemical industry.
Technical Parameters of YA Elliptic Vibrating Screen:
| Model | Number of screening layer | Screen area (mm2) | Mesh size (mm) | Screen dimension (mm) | Max. feeding length (mm) | Handling Capacity (t/h) | Vibrating frequency (t/min) | Double amplitude (mm) | Motor power (mm) | Theoretical weight (t) | Overall dimensions (mm) (length×width×height) |
| YA1230 | 1 | 3.2 | 3-50 | 1200×3000 | 200 | 7.5-70 | 800-970 | 8 | 5.5 | 1.75 | 3073×2030×1611 |
| 2YA1230 | 2 | 3.7 | 3-50 | 1220×3050 | 200 | 10-90 | 800-970 | 8 | 5.5 | 2.34 | 3502×2127×1868 |
| 3YA1230 | 3 | 3.7 | 3-80 | 1220×3050 | 200 | 30-90 | 800-970 | 8 | 7.5 | 3.05 | 3538×2168×2245 |
| 2YA1542 | 2 | 6.1 | 5-50 | 1500×4200 | 200 | 50-180 | 970 | 8 | 15 | 5.33 | 5081×2573×2660 |
| 2YA1548 | 2 | 7.1 | 5-50 | 1500×4800 | 200 | 50-190 | 970 | 8 | 15 | 5.5 | 5745×2573×3367 |
| 3YA1548 | 3 | 7.1 | 5-50 | 1500×4800 | 200 | 50-200 | 970 | 8 | 15 | 6.08 | 5909×2573×3367 |
| 4YA1548 | 4 | 7.1 | 5-50 | 1500×4800 | 200 | 50-200 | 970 | 8 | 18.5 | 6.75 | 5909×2573×3845 |
| 3YA1848 | 3 | 8.7 | 5-80 | 1800×4800 | 200 | 50-250 | 970 | 8 | 18.5 | 6.93 | 6072×2970×3366 |
| 4YA1848 | 4 | 8.7 | 5-80 | 1800×4800 | 200 | 50-260 | 970 | 8 | 22 | 7.1 | 6072×2970×3845 |
| 2YA1860 | 2 | 10.8 | 5-80 | 1800×6000 | 200 | 50-280 | 970 | 8 | 18.5 | 7.2 | 6264×2971×3276 |
| 3YA1860 | 3 | 10.8 | 5-80 | 1800×6000 | 200 | 50-300 | 970 | 8 | 18.5 | 7.7 | 6264×2971×3957 |
| 2YA2160 | 2 | 11.5 | 5-100 | 2100×6000 | 400 | 100-500 | 730 | 8 | 30 | 9.24 | 6374×3321×3707 |
| 3YA2160 | 3 | 12.8 | 5-100 | 2100×6000 | 400 | 160-640 | 730 | 8 | 22 | 8.2 | 6374×3323×4011 |
| 4YA2160 | 4 | 12.8 | 5-150 | 2100×6000 | 400 | 160-640 | 730 | 8 | 30 | 9.1 | 6374×3388×4490 |
| 2YA2460 | 2 | 14.4 | 5-150 | 2400×6000 | 400 | 150-700 | 730 | 8 | 30 | 12.35 | 6374×3701×3707 |
| 3YA2460 | 3 | 14.4 | 5-150 | 2400×6000 | 400 | 160-1120 | 730 | 8 | 30 | 11.8 | 6374×3702×4011 |
| 4YA2460 | 4 | 14.4 | 5-150 | 2400×6000 | 400 | 160-1120 | 730 | 8 | 37 | 13 | 6374×3710×4448 |
YK Circular Vibrating Screen:
The YK circular vibrating screen is a kind of new-type high-efficiency screening machine with many a screen layer. It is mainly used in fields of mining, coal dressing, building materials, electric power, chemical, etc.
Its characteristics include reliable structure, strong vibrating capacity, high screening efficiency, good durability, easy maintenance, safe operation, and more.
Technical Parameters of YK Circular Vibrating Screen:| Model | Number of screening layer |
Screen area (mm2) | Mesh size (mm) | Screen dimension (mm) |
Max. feeding length (mm) | Handling Capacity (t/h) |
Vibrating frequency (t/min) | Double amplitude (mm) |
Motor power (mm) |
Theoretical weight (t) | Overall dimensions(mm) (length×width×height) |
| 4YK1860 | 4 | 10.8 | 5-100 | 1800×6000 | 400 | 80-320 | 850 | 8 | 22 | 8.2 | 6417×3439×4276 |
| 2YK2160 | 2 | 12.8 | 5-80 | 2100×6000 | 400 | 100-330 | 850 | 8 | 22 | 7.5 | 7005×3470×3654 |
| 3YK2160 | 3 | 12.8 | 5-100 | 2100×6000 | 400 | 100-380 | 850 | 8 | 22 | 8.2 | 7172×3528×4133 |
| 4YK2160 | 4 | 12.8 | 5-150 | 2100×6000 | 400 | 120-430 | 850 | 8 | 37 | 10.3 | 7326×3545×4523 |
| 2YK2460 | 2 | 14.4 | 5-150 | 2400×6000 | 400 | 100-380 | 850 | 8 | 30 | 8.5 | 7010×3796×3654 |
| 3YK2460 | 3 | 14.4 | 5-150 | 2400×6000 | 400 | 160-450 | 850 | 8 | 30 | 9.2 | 7176×3816×4133 |
| 4YK2460 | 4 | 14.4 | 5-150 | 2400×6000 | 400 | 160-450 | 850 | 8 | 37 | 12 | 7328×3896×4523 |
| 2YK3070 | 2 | 21 | 5-150 | 3000×7000 | 400 | 150-600 | 850 | 8 | 37 | 16 | 7970×4465×4764 |
| 3YK3070 | 3 | 21 | 5-150 | 3000×7200 | 400 | 150-650 | 850 | 8 | 45 | 17 | 8225×4582×4822 |
Shanghai Landytop Heavy Industry Machinery Co., Ltd is a professional manufacturer and supplier of vibrating screen in China. In addition to vibrating screen, we still provide jaw crusher, impact crusher, cone crusher, two in one crusher, superfineness energy saving crusher, vertical shaft impact crusher, vibrating feeder, sand washer, belt conveyor, crushing plant, etc. All of those products have obtained ISO9001 certificate. If you're interested in our vibrating screen, please contact us freely.
