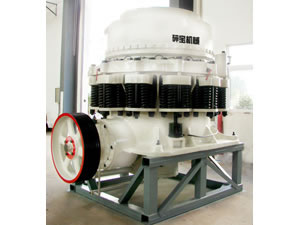

Spring Cone Crusher

Description:
The spring cone crusher is suitable for crushing hard and mid-hard ores and rocks in a variety of industries, such as metallurgy, construction, road building, chemical, and so on.

Its main components include oil pump, oil tank and lubricating system.

Features:
1.Characteristics of this spring cone crusher include unique and rational framework, reliable performance and low operation costs.
2.Its frame is made of cast steel.
3.Its bearing seat has employed skeleton-type sealing ring to avoid the leakage of lubrication oil.
4.Hydraulic adjustment mechanism is equipped to conveniently control the size of the discharge opening.
5.The spring cone crusher will automatically stop working when the temperature of oil is too   high or when the oil flowing rate is low.
6.Hydraulic chamber cleaning mechanism is designed for this type of crusher.
7. A rib liner is used inside the bottom section of the frame in order to protect it from wearing.

Technical Parameters:

Specification	Chamber shape	Max. feeding size (mm)		Min. size of discharge opening(mm)	Motor power (kw)	Crushing output(t/h) Close discharge size(mm)											Theoretical weight (t)
						6	10	13	16	19	22		25	38	51	64
SBC1000	C	160		13	90~110			80	100	135	150	175		235			10.8
	M	115		10	90~110		65	75	90	120	135	150					10.8
	F	80		8	90~110	52	62	72	90	120	135	150					10.51
	EF	50		6	90~110	50	55	65	70	102							10.51
SBC1160	C	180		13	110~132			115	135	150	180	200		260			15.5
	M	130		10	110~132		100	110	120	135	165	175					15.5
	F	90		10	110~132		80	105	110	140							15.5
	EF	60		6	110~132	60	74	105	110	130							15.5
SBC1300	C	200		16	132~160				150	180	200	230		310	390		22.3
	M	150		13	132~160			115	140	160	190	210					22.3
	F	102		10	132~160		90	115	145	160							22.3
	EF	70		8	132~160		88	110	135	155							22.3
SBC1380	C	215		19	185~220					200	220	260		350	440		26.3
	M	160		16	185~200				155	180	200	220					26.3
	F	115		13	185~200			150	190	210	230						26.3
	EF	76		8	185~200		122	148	185	200							26.3
SBC1500	C	235		22	185~200						265	310		420	525	580	37.5
	M	175		19	185~220					215	240	265		320			37.75
	F		130	13	185~220			180	210	235	255	275					37.75
	EF		90	10	185~220		148	178	200	220							37.75
SBC1680	C		267	22	250~300						330	390		525	655	725	44.3
	M		203	16	250~300				230	270	300	300					44.3
	F		140	13	250~300		185	225	265	340							44.3
	EF		95	10	250~300		180	220	260	335							44.3

As a professional manufacturer and supplier of spring cone crusher in China, Shanghai Landytop Heavy Industry Machinery Co., Ltd still supply customers across the globe with jaw crusher, impact crusher, two in one crusher, superfineness energy saving crusher, vertical shaft impact crusher, vibrating screen, sand washer, belt conveyor, crushing plant, etc. All of our products have obtained ISO9001 certification, and they have been well received by clients from different countries and regions, like Mongolia, Russia, Saudi Arabia, etc. If you need spring cone crusher, please don't hesitate to contact us.
