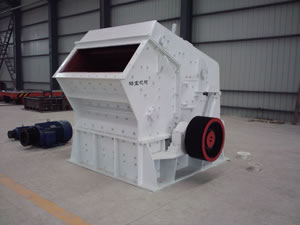

Impact Crusher
Description:The impact crusher is a kind of stone rock breaker with the other name of impact crushing machine. This mining machine is especially used for crushing ores, rocks (like granite, limestone, concrete, etc.) and many other materials whose particle size varies from 100 to 500mm and whose compression strength is not more than 360Mpa. And it can be applied in fields of highway, water reservoir, railway, airport and some other industries that have high expectations for shapes of stone materials.
Features of Impact Rock Crusher:
1.Our impact crusher is a new type of crushing equipment developed on the basis of advanced domestic and international technologies.
2. The plate hammer of the impact rock crushing machineis cast from high-chromium alloys or special rare earth materials. Thus, both high wear resistance and high impact toughness can be found in the hammer.
3.Characteristics of this impack rock crusher are small size, high crushing efficiency, long service life, high reduction ratio, low power consumption, convenient maintenance, and the like.
Technical Parameters:
Model | Rotor diameter ×width (mm) | Size of feed opening (mm) | Max feeding length (mm) | Processing capacity (t/h) | Motor power (kw) | Theoretical weight (t) | Overall dimensions (mm) (length × width × height) |
PF-1007 | φ1000×700 | 400×730 | 300 | 37~45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 | φ1000×1050 | 400×1080 | 350 | 50~80 | 55~75 | 12..2 | 2400×2250×2660 |
PF-1210 | φ1250×1050 | 400×1080 | 350 | 80~120 | 110 | 14 | 2690×2338×2890 |
PF-1214 | φ1250×1400 | 400×1430 | 350 | 130~180 | 132 | 18.8 | 2690×2408×2698 |
PF-1210V | φ1250×1050 | 400×1080 | 350 | 70~120 | 110 | 15.5 | 2690×2338×2890 |
PF-1214V | φ1250×1400 | 400×1430 | 350 | 130~180 | 132 | 20 | 2690×2688×2890 |
PF-1315VI | φ1320×1500 | 800×1520 | 350 | 150~220 | 200 | 21 | 3096×3273×2667 |
PF-1315VII | φ1320×1500 | 860×1520 | 500 | 160~220 | 220 | 22 | 3096×3273×2667 |
PF-1515V | φ1450×1500 | 850×1580 | 500 | 220~320 | 280 | 30 | 3553×2835×3270 |
Model | Rotor diameter ×width (mm) | Size of feed opening (mm) |
Max feeding length (mm) | Processing capacity (t/h) |
Motor power (kw) |
Theoretical weight (t) | Overall dimensions (mm) (length × width × height) |
PF-1007 (hydraulic) |
φ1000×700 | 400×730 | 300 | 37~45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 (hydraulic) |
φ1000×1050 | 400×1080 | 350 | 50~80 | 55~75 | 12..2 | 2400×2250×2660 |
PF-1210 (hydraulic) |
φ1250×1050 | 400×1080 | 350 | 70~120 | 110 | 15 | 2690×2338×2890 |
PF-1214 (hydraulic) |
φ1250×1400 | 400×1430 | 350 | 130~180 | 132 | 18.8 | 2690×2688×2890 |
PF-1210V (hydraulic) |
φ1250×1050 | 400×1080 | 350 | 70~120 | 110 | 15.5 | 2690×2338×2890 |
PF-1214V (hydraulic) |
φ1250×1400 | 400×1430 | 350 | 130~180 | 132 | 20 | 2690×2688×2890 |
PF-1315VI (hydraulic) |
φ1320×1500 | 800×1520 | 350 | 150~220 | 200 | 22.8 | 3.96×3273×3667 |
PF-1315VII (hydraulic) |
φ1320×1500 | 900×1520 | 500 | 160~250 | 220 | 23.8 | 3432×3040×2862 |
PF-1515V (hydraulic) |
φ1450×1500 | 850×1580 | 500 | 220~320 | 280 | 32 | 3550×2838×3270 |
Shanghai Landytop Heavy Industry Machinery Co., Ltd is a professional manufacturer and supplier of impact crusher in China. In addition to impact stone crusher, we still provide jaw crusher, composite cone crushing machine, two in one crush equipment, superfineness energy saving crusher, vertical shaft impact crushing mcahinery, vibrating screen, belt conveyor, crushing plant, etc. All of those products have obtained ISO9001 certificate. If you're interested in our impact crusher, please contact us freely.
