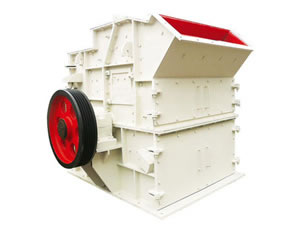

Superfineness Energy Saving Crusher
Description:
Our PCC superfineness energy saving crusher is mainly used for high-efficiency fine crushing mid-hard materials, like limestone, cement clinker, iron ore, shale, pyrites, dolomite, granite, gypsum, mineral slag, and some other mixed items. And it can be used in a wide variety of fields, such as chemical, construction, mining, coal processing, metallurgy, sand making, refractory, etc.
The PCC superfineness energy saving crusher is developed on the basis of advanced foreign technology and mine characteristics of China. So when compared with other kinds of crusher, it has obvious advantages and its frame is also further optimized.
Features:
1.Its wearing parts are made of high-grade multi-element high-alloy wear resistant materials, in which case the wear resistance and impact resistance of lining plates and hammerheads have been greatly improved.
2.Features of this PCC superfineness energy saving crusher include stable operation with little dust, and low power consumption. For equivalent output, it can save as much as 40% power than the ordinary crusher.
3.It is designed with granularity adjustment device, which helps to ensure that 3mm particle products take up as much as 90%.
4.Both ends of its high-quality multi-element alloy hammerhead can be put into use, which enables the service life of the hammer to be prolonged by 3 to 4 times.
5.Big crushing ratio and convenient maintenance are both available for the PCC superfineness energy saving crusher.
Technical Parameters of Superfineness Energy Saving Crusher:Model | Max. feeding size (mm) |
Processing capacity (t/h) | Average discharge size(mm) | Motor power (kw) | Overall dimensions(mm) (Length× width×height) |
|
Clinker | Limestone | |||||
PCC-8040 | 15~20 | 20~25 | 3 | 37 | 1450×1532×1400 | |
PCC-8080 | 25~30 | 30~40 | 3 | 45 | 1450×1932×1380 | |
PCC-9080 | 40~45 | 45~50 | 3 | 55 | 1764×1916×1705 | |
PCC-9010 | 45~50 | 50~55 | 3 | 55 | 1764×2186×1705 | |
PCC-1010 | 50~60 | 60~70 | 3~5 | 90 | 2148×2520×2031 | |
PCC-1210 | 60~80 | 70~90 | 3~5 | 110 | 2534×2790×2335 | |
PCC-1212 | 60~100 | 70~110 | 3~5 | 132 | 2534×2940×2335 | |
PCC-1414 | 70~150 | 70~160 | 5~8 | 200 | 2715×2994×2558 | |
PCC-1616 | 100~210 | 110~260 | 5~8 | 250 | 2932×3574×2910 | |
PCC-1818 | 120~270 | 130~310 | 5~10 | 315 | 3131×3754×3160 |
Shanghai Landytop Heavy Industry Machinery Co., Ltd is a professional manufacturer and supplier of superfineness energy saving crusher in China. In addition to superfineness energy saving crusher, we still provide jaw crusher, impact crusher, cone crusher, two in one crusher, vertical shaft impact crusher, vibrating screen, vibrating feeder, sand washer, belt conveyor, crushing plant, etc. All of those products have obtained ISO9001 certificate. If you're interested in our superfineness energy saving crusher, please contact us freely.
